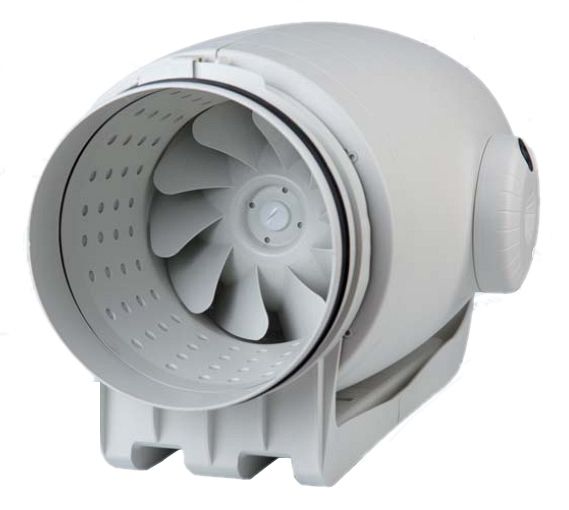

S&P TD 350-125 Silent Intermittent Inline Fan

Store / Extractor Fans Manufactures & Brands

€187.00

Price incl. VAT (23%) €34.97

In stock

Product Details

Product Description

The S&P TD 350-125 Silent is a very quiet running acoustic inline fan with a choice of two flow rates, 92 litres per second and 72 litres per second . Should be installed in 125mm solid ducting or larger for longer runs with a couple of bends. This fan can be connected to a separate PIR sensor with a overrun timer adjustable from 1 to 30 minutes.

Manufactured in plastic material, with a specifically designed internal skin to direct the sound waves at the right angle for them to be captured by the sound-absorbent material Fitted with rubber gaskets on the inlet and outlet to absorb vibrations, the body that can be dismantled. The connection box can be rotated 360º, to facilitate easy connection of the power cable.

This domestic axial in-line fan is designed to solve ventilation problems for ducted systems. The motors are assembled on silent elastic blocks and fitted with ball bearings for enhanced working life. The high extraction rate of the fan is 330 cubic meters in free air which makes the fan perfect for larger kitchens where the ducting has to travel a long distance over another room to an exit point.

Flexible location enables the Silent TD 350/125 fan to be connected to any point on the ventilation duct; at the beginning, in-between or at the end, without the loss of any performance. The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.

Key features

IP44 Rated
Choice of two flow rates of 91.66 & 72 litres per second
Quiet running fan, sound level of 23 and 18 dB(A)
Built-in mounting frame with quick-release motor clips
2 Year Warranty
