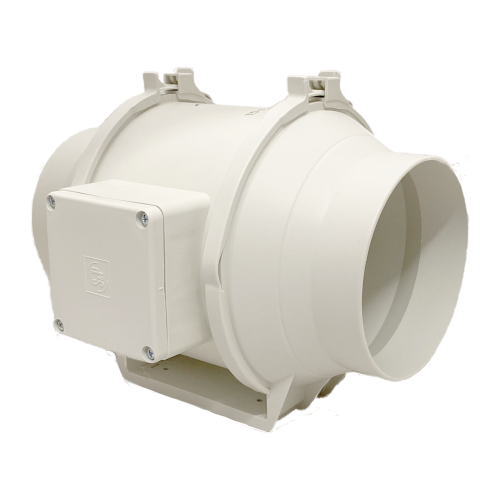

S&P TD 350-125 N Intermittent Inline Fan

Name: S&P TD 350-125 N Intermittent Inline Fan
SKU: 00150
Price: 153.0 EUR
Availability: InStock

Store / Extractor Fans Manufactures & Brands

€153.00

Price incl. VAT (23%) €28.61

In stock

Product Details

Product Description

The S&P TD 350-125 N is a quiet running inline fan with a choice of two flow rates, 91 litres per second and 69 litres per second . Should only be used with 125mm solid ducting to achieve required flow rates. This fan can be connected to a separate PIR sensor with a overrun timer adjustable from 1 to 30 minutes where there is no provision for general ventilation by means of controllable background ventilator and no provision for purge ventilation by means of an openable window, the fan should include an automatic 15 minute overrun (after switchoff).

This domestic axial in-line fan is designed to solve ventilation problems for ducted systems. The motors are assembled on silent elastic blocks and fitted with ball bearings for enhanced working life. The high extraction rate of the fan is 360 cubic meters in free air which makes the fan perfect for utilityrooms and kitchens where the ducting has to travel a long distance with a number of bends to an exit point.

Flexible location enables the Silent TD 350/125 fan to be connected to any point on the ventilation duct; at the beginning, in-between or at the end, without the loss of any performance. The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.

Key features

IP44 Rated
Choice of two flow rates of 91 & 63 litres per second
Quiet running fan, sound level of 33 and 28 dB(A)
Built-in mounting frame with quick-release motor clip
2 Year Warranty
Free delivery

Product Brochure
