Product description

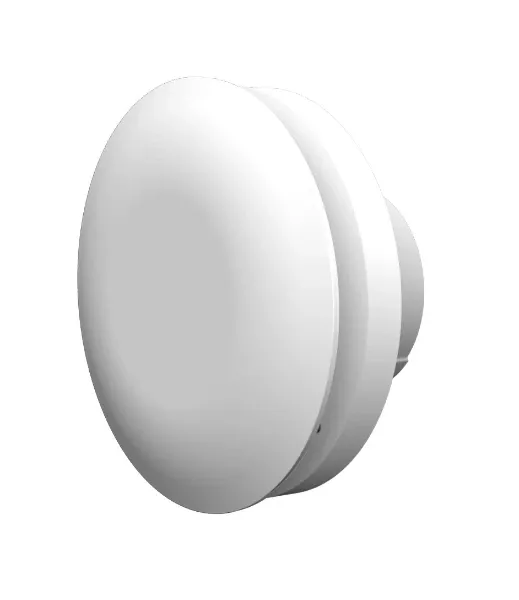

The Vent Axia Lo-Carbon NBR dMEVc 100mm with Humidistat, and Timer 498096 is a is a continuous running, constant volume fan which has the option of a switched live or humidistat. This fan is suitable for utilityrooms and bathroom/toilet applications, this continuous running dMEV C fan is available as a humidistat model which incorporates an ambient response humidistat. The fan will increase the extract rate if the humidity rises above the point set at installation. This fans has optional Comfort Control, which includes a timer function.

The 100mm Lo-Carbon NBR dMEV C should have variable speed settings of 5-26 l/s achieving a minimum noise level of 7.4dB(A) at 3 metres. The controls for the Lo-Carbon NBR dMEV C unit shall provide fully adjustable, continuous whole house ventilation rates. The Boost speed shall be activated via an integral humidistat or via LS Input. Nuisance tripping has also been minimised within the fan logic. The integral humidity sensor versions have functionality that allows for proportional speed increase up to 85% relative humidity (RH) before enabling Boost.

The Lo-Carbon NBR dMEV C is complete with IPX5 rating, allowing flexible installation within Zone 1, 2 and 3. A silent mixed flow impeller means the Lo-Carbon NBR dMEV C can meet the requirements of many domestic installations without the need to use a traditional centrifugal fan. This fan shall be able to be commissioned as a continuous running fan according to the Building Regulations compliant design TGD part F. This fan has a high efficiency EC/DC motor to deliver specific fan powers as low as 0.08 W/l/s, as measured in accordance with the SAP PCDB test method and listed on the PCDB database.

Key features

• Purchase 2 or more at €150 each
• Purchase 3 or more at €147 each
• Purchase 4 or more at €144 each
• Purchase 4 or more at €140 each
• Purchase 5 or more at €140 each
• Purchase 6 or more at €136 each
• Continuously running 100mm dMEV fan with sleek circular design
• Designed to comply with the latest Building Regulations Part L1A and F 2021
• SAP PCDB listed with SFP's down to 0.08 W/l/s
• Near silent operation independently tested
• IPX5 rated, wall and ceiling mounted Zones 1, 2 and 3
• Low ceiling void - 56mm (100mm spigot)
• Easy to commission, fully adjustable variable control platform
• Intelligent humidistat model with proportional increase and timer
• Comfort control option
• 7 Year warranty
• Constant volume which can be switch on or off
• Free delivery
