Product description

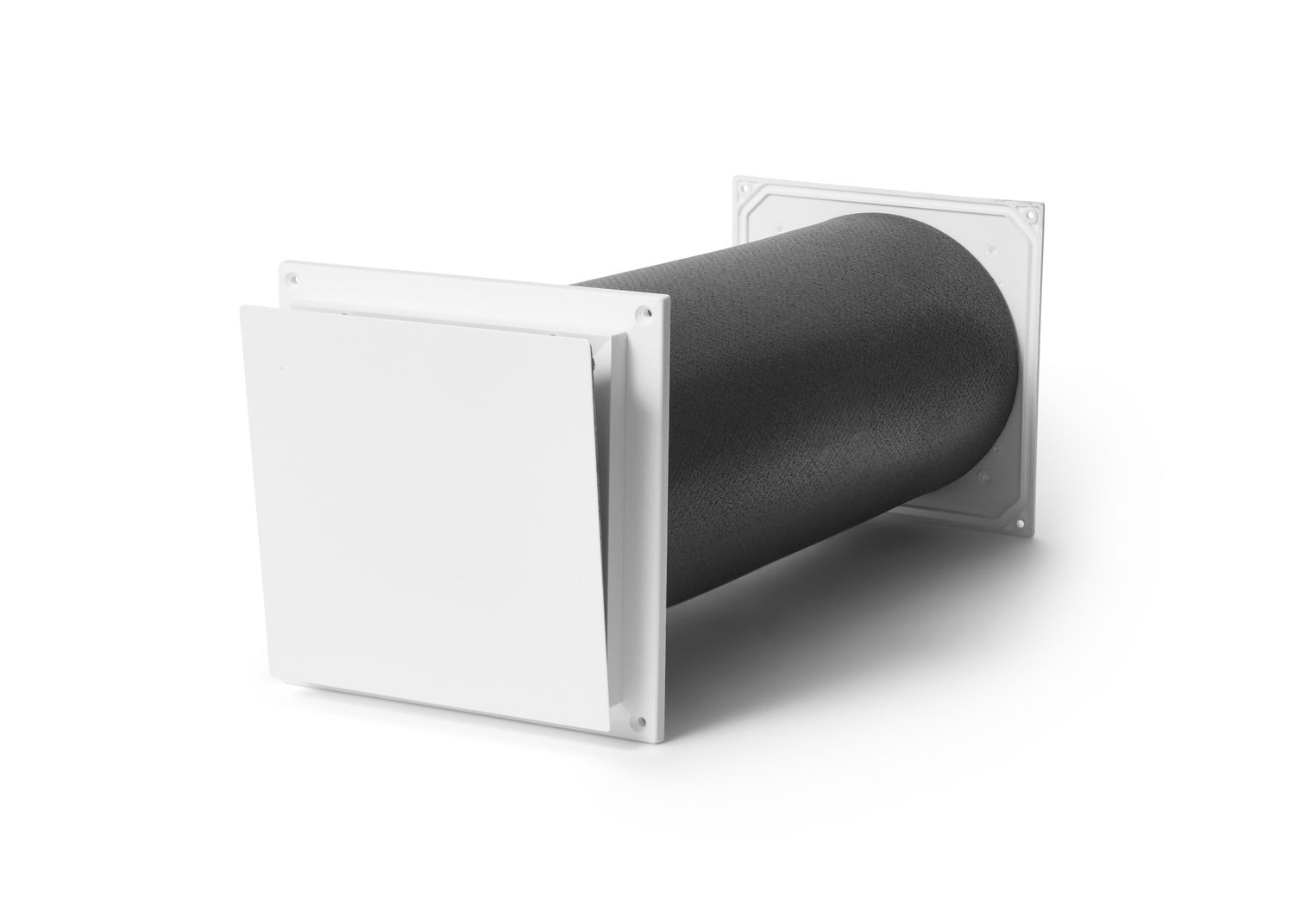

TL80DE dBRIP (148mm Diameter) is a complete noise-reducing vent consisting of a noise-reducing pipe and external grille. An excellent choice for anyone disturbed by outside noise. The noise-reducing pipe can be easily cut to the right length using a snap-off knife. This wall vent has a very discreet design. The front piece can be wallpapered or painted. The vent is equipped with thick condensation insulation, over-ventilation protection, stormproofing and a dust filter. The vent has silicone flaps inside to reduce the air flow in windy conditions, which ensures good comfort in the room and reduces the risk of draughts.

Airflow is regulated with the front piece, which has a mechanism for changing the opening angle into four positions or close completely. The front piece is opened at the top edge and forces the air upwards, which provides a comfortable distribution pattern is carefully designed to be compatible with underfloor heating systems. This vent delivers the required air flow for dMEV and MEV systems.

The sound-absorbing pipe is easy to cut to the correct length with a utility knife. Standard pipe length is 400 mm with an outer diameter of 148 mm and inner diameters of 81 mm and 98 mm.

Key features

• Purchase 2 or more at €90.00 each
• Purchase 3 or more at €87.00 each
• Purchase 4 or more at €85.00 each
• Purchase 5 or more at €83.00 each
• 148mm diameter x 400mm length through wall vent which provides controllable background ventilation and noise reduction
• Suitable for use with MEV and dMEV systems
• Sound reduction model with silicone flaps to provide storm protection (Fresh TL80DE dBRIP)
• Supplied as a controllable internal vent, sound reducing ducting and a external grille with a fly screen
• Discreet design, can be wallpapered or painted
• The vent is excellent for use with underfloor heating
• If there is a radiator, it is best to try to position the vent above the radiator. With this positioning, you utilise the convection flows and achieve the best comfort level
• Ventilation levels can be controlled to set levels or closed completely
• Supplied with standard dust and insect filter
• Front cover insulated from condensation and sound penetration
• Unique air distribution pattern
• Easy to clean and install
• The pipe length is 4000mm as standard, can be easily cut to the right length using a snap-off knife
• External grille is white as standard
• Free delivery
