Product description

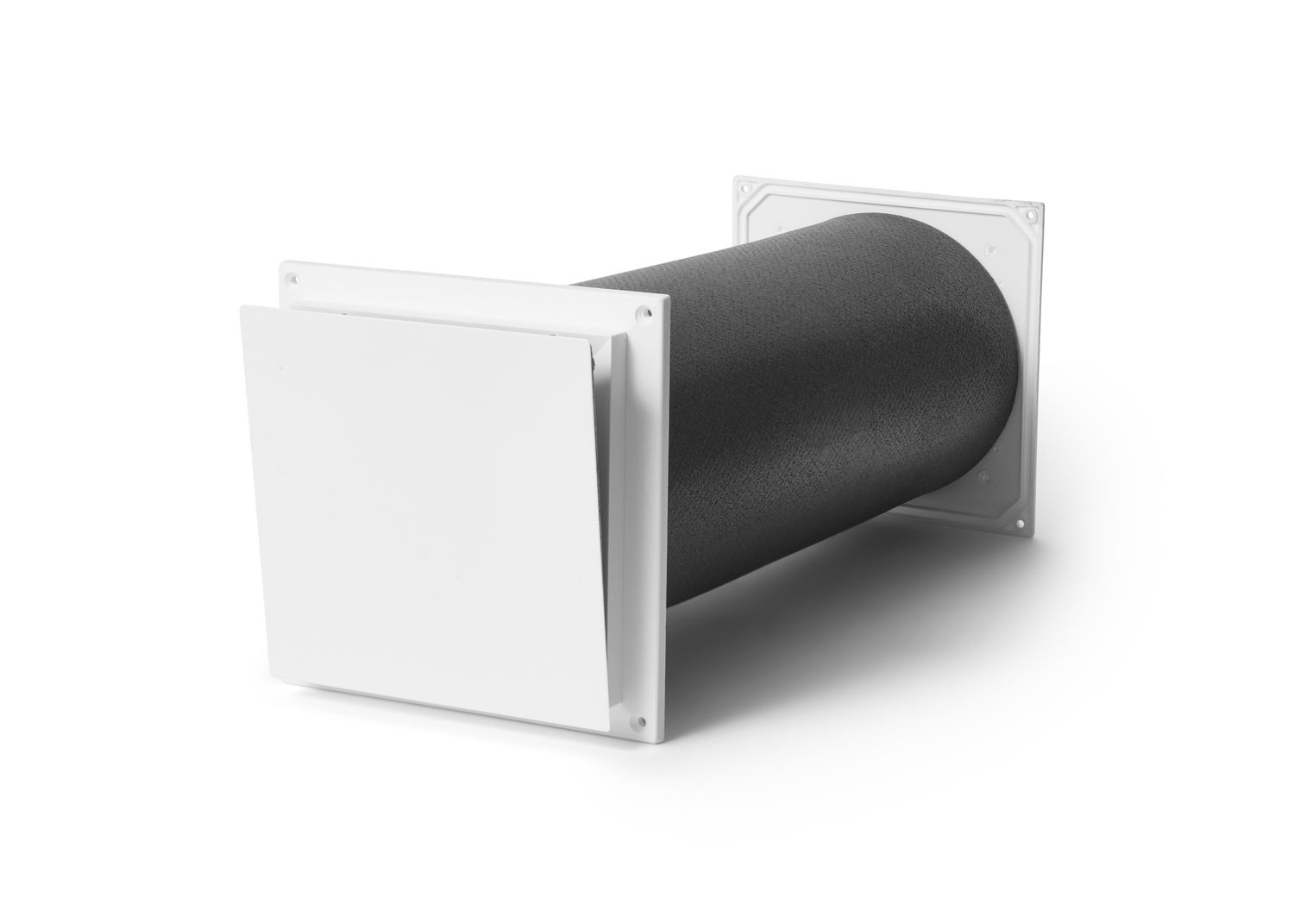

TL80D dBR IP (148mm Diameter) is a complete noise-reducing vent consisting of a noise-reducing pipe and external grille. An excellent choice for anyone disturbed by outside noise. The noise-reducing pipe can be easily cut to the right length using a snap-off knife. This wall vent has a very discreet design. The front piece can be wallpapered or painted. The vent is equipped with thick condensation insulation, over-ventilation protection and a dust filter.

Airflow is regulated with the front piece, which has a mechanism for changing the opening angle into four positions or close completely. The front piece is opened at the top edge and forces the air upwards, which provides a comfortable distribution pattern is carefully designed to be compatible with underfloor heating systems. This vent delivers the required air flow for dMEV and MEV systems.

The sound-absorbing pipe is easy to cut to the correct length with a utility knife. Standard pipe length is 400 mm with an outer diameter of 148 mm and inner diameters of 81 mm and 98 mm.

Key features

• Purchase 2 or more at €81.00 each
• Purchase 3 or more at €78.00 each
• Purchase 4 or more at €76.00 each
• Purchase 5 or more at €74.00 each
• 148mm diameter x 400mm length through wall vent which provides controllable background ventilation and noise reduction
• Suitable for use with MEV and dMEV systems
• Supplied as a controllable internal vent, sound reducing ducting and a external grille with a fly screen
• Discreet design, can be wallpapered or painted
• The vent is excellent for use with underfloor heating
• If there is a radiator, it is best to try to position the vent above the radiator. With this positioning, you utilise the convection flows and achieve the best comfort level
• Ventilation levels can be controlled to set levels or closed completely
• Supplied with standard dust and insect filter
• Front cover insulated from condensation and sound penetration
• Unique air distribution pattern
• Easy to clean and install
• The pipe length is 4000mm as standard, can be easily cut to the right length using a snap-off knife
• External grille is white as standard
• Free delivery
